Clay

🕒 Created: 2025-06-24 | Updated: 2025-12-13

Impressions

Amazing library.
What Clay offers :
- "Buttons".
  - Nothing more than any ordinary element that uses hover checks and pointer input detection functions.
- "Tabs"
  - Nothing more than buttons that change what will be rendered.
- Container system and nested elements.
  - Context menus.
- Automatic alignment of elements/text.
- Scrollers.
- Capturing system, although basic and limited to the pointer.
- Advanced drawing:
  - Rounded-corner rectangles.
  - Dividers.
What is missing :
- Text input.
- Any high-level widget:
  - Drag and Drop.
  - Window dragging.
  - External windows support.
  - Tiling.
  - Check buttons.
  - Sliders.
  - Texture Progress.
  - Video Players.
  - Color Picker.
  - Nine-patch texture.
Should I use it right now?
- The library for me has:
  - A very nice container system.
  - An okay hover / button system.
  - A pleasant web-style drawing system.
- However, the things the library offers are WELL outside what I actually need right now.
- It is certainly a good library for containers, and sounds like a good framework for building sites when you don't want to use HTML/CSS frontend, but that's mostly it.
- IF / WHEN I work on something like that, then it makes sense to use the library.
- But, considering the UI needs in games, in the end Clay is only useful if it actually helps. There's no strong reason to RUSH implementing it.
  - The reality is that NOTHING would change in my game by using Clay. There is no new visual feature or functionality.
  - It would only be a convenience to have a solid library that provides container functionality.
  - That's it.
- In the future, I'll for sure go for it, but not now.

About

Layout engine.
It's an ImGUI in C, renderer-agnostic.
Clay .
Bindings .
- (2025-06-24) Cpp, Csharp, Odin, Rust, Zig.

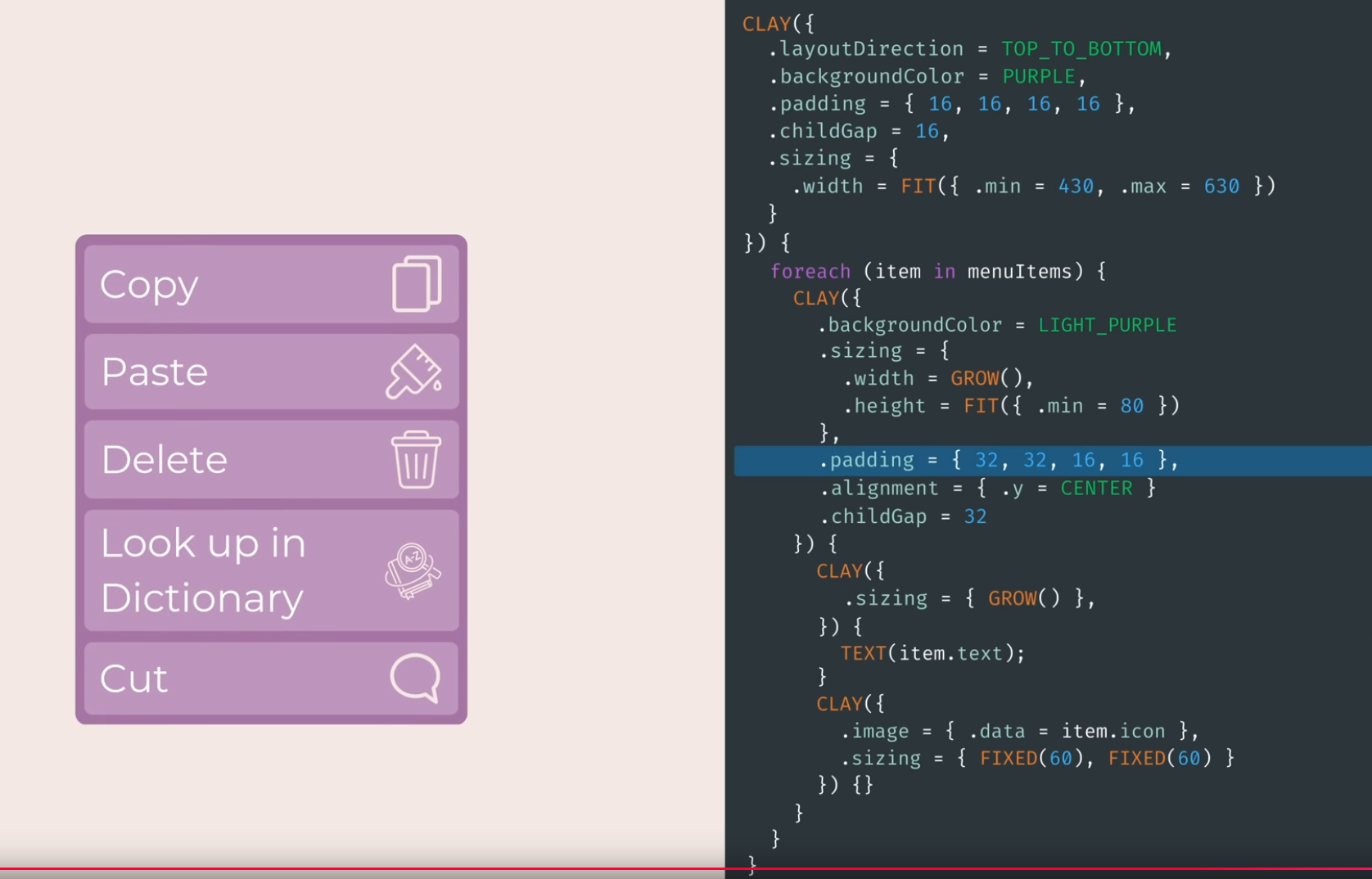

Presentation .
- Very well presented.
Explanation .
- Tree.
  - Parent.
  - Child array.
  - "Reverse Breadth-first search".
    - In this case, when leaving the scope, calling CloseElement() this happens "accidentally".
    - In CloseElement() the children's properties are defined so that when the parent is reached it already has all child information to define its own properties.
- The video explains all the passes below very well.

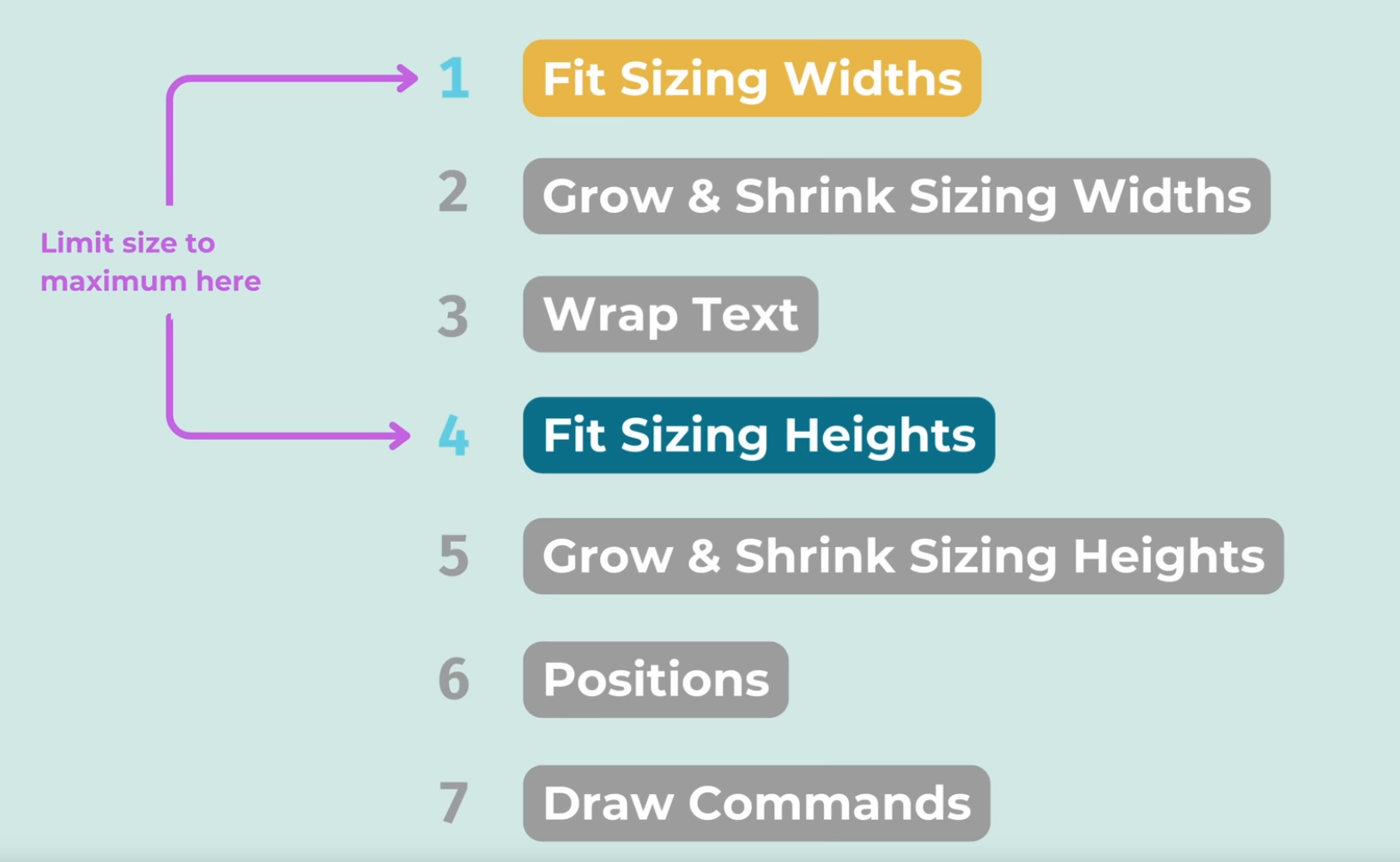

- Full Layout Pass:
  - .
  - The alignment part is handled together with Positions.
- Final code:
  - .
Example site .
- Pressing d on the page opens the debugger.
- Nice.

Key Detection / Click / Hover / Capturing

Limitations :
- Capturing only works for the Pointer; the Pointer can be anything, not necessarily MB1.
Capturing :
```
PointerCaptureMode :: enum EnumBackingType {
    Capture,
    Passthrough,
}
```
- The only place this is used is via the CLAY macro during element creation.
- This is the only place in the entire binding that references capturing.
- Capturing captures or ignores, plain and simple, right?
  - I'm unsure if passthrough is equivalent to pass (propagate up) or stop as in Godot.
  - Ideally it's the stop option. I find pass kind of odd, although it may have some uses in some circumstances.
To know if a button is pressed or hovered, it's all done through the OnHover callback.
A PointerData is received containing position info and PointerDataInteractionState .
By default more "attention" is given to the left click than to any other input.
- SetPointerState(pos, pointerDown) technically allows "anything" as a pointer.
- So, technically any input is supported as long as the check is done:
```
my_hover_callback :: proc(etc, pointer_data, etc) {
    if pointer_data.state.PressedThisFrame {
        // do something
    }

    // Or simply:
    if rl.IsMouseButtonPressed(.LEFT) || rl.IsMouseButtonPressed(.RIGHT) || rl.IsKeyPressed(.A) {
        // do something
    }

}
```
- If you choose to ignore the pointer state information, you will thus ignore Clay's whole input capturing system.
  - In some moments that's fine, but sometimes this becomes a limitation of Clay: capturing only works for Pointer input, nothing else, because that's the only information passed to Clay.

Support

Wasm support: compile with clang to a 15kb uncompressed .wasm file for use in the browser

Render

Renderer-agnostic: outputs a sorted list of rendering primitives that can be easily composited in any 3D engine, and even compiled to HTML (examples provided).
"How does clay render fonts in RayLib? is it a solution for font rendering?"
- Nope, never. Clay with RayLib renders fonts using RayLib calls rl.DrawTextEx() , nothing else.

Odin Bindings

Main difference:

// C form of element macros
// Define an element with 16px of x and y padding
CLAY({ .id = CLAY_ID("Outer"), .layout = { .padding = CLAY_PADDING_ALL(16) } }) {
  // Child elements here
}

// Odin form of element macros
if clay.UI()({ id = clay.ID("Outer"), layout = { padding = clay.PaddingAll(16) }}) {
    // Child elements here
}

The macro CLAY is replaced by if clay.UI() .
I personally find this a bit goofy.

This works due to the use of @deferred , calling another function when leaving the scope:

_OpenElement :: proc() ---
_CloseElement :: proc() ---
_ConfigureOpenElement :: proc(config: ElementDeclaration) ---

ConfigureOpenElement :: proc(config: ElementDeclaration) -> bool {
    _ConfigureOpenElement(config)
    return true
}

@(deferred_none = _CloseElement)
UI :: proc() -> proc (config: ElementDeclaration) -> bool {
    _OpenElement()
    return ConfigureOpenElement
}

Renderers with bindings :
- (2025-06-25)
  - At the moment, only RayLib exists.
  - No Sokol, SDL2 or SDL3.

Question

// Odin form of element macros
if clay.UI()({ id = clay.ID("Outer"), layout = { padding = clay.PaddingAll(16) }}) {
    // Child elements here
}

It's so that a struct literal for the second call is evaluated after the element is opened, so you can do stuff like

if clay.UI()({
    backgroundColor = GRAY if clay.Hovered() else BLACK,
    }) {
      // ...
}

and the clay.Hovered() will be evaluated in the context of the newly-opened element rather than in the context of the parent element (edited)Wednesday, 22 October 2025 09:40
