About

LDtk .
LDtk .
Open-source.
Made in Haxe.
"From the director of DeadCells".
Formerly 'LEd'.

Impressions

Initially the app is intimidating with the amount of information, giving the impression that it is quite bloated. However, if you ignore the examples and create a blank project, the app becomes much simpler and more pleasant.
There is no customization of shortcuts or interface customization.
The button to create an entity, resize an entity and select an entity is the same (MB1) and cannot be changed.
- This is annoying, many times I create an entity when I only wanted to move the existing one.

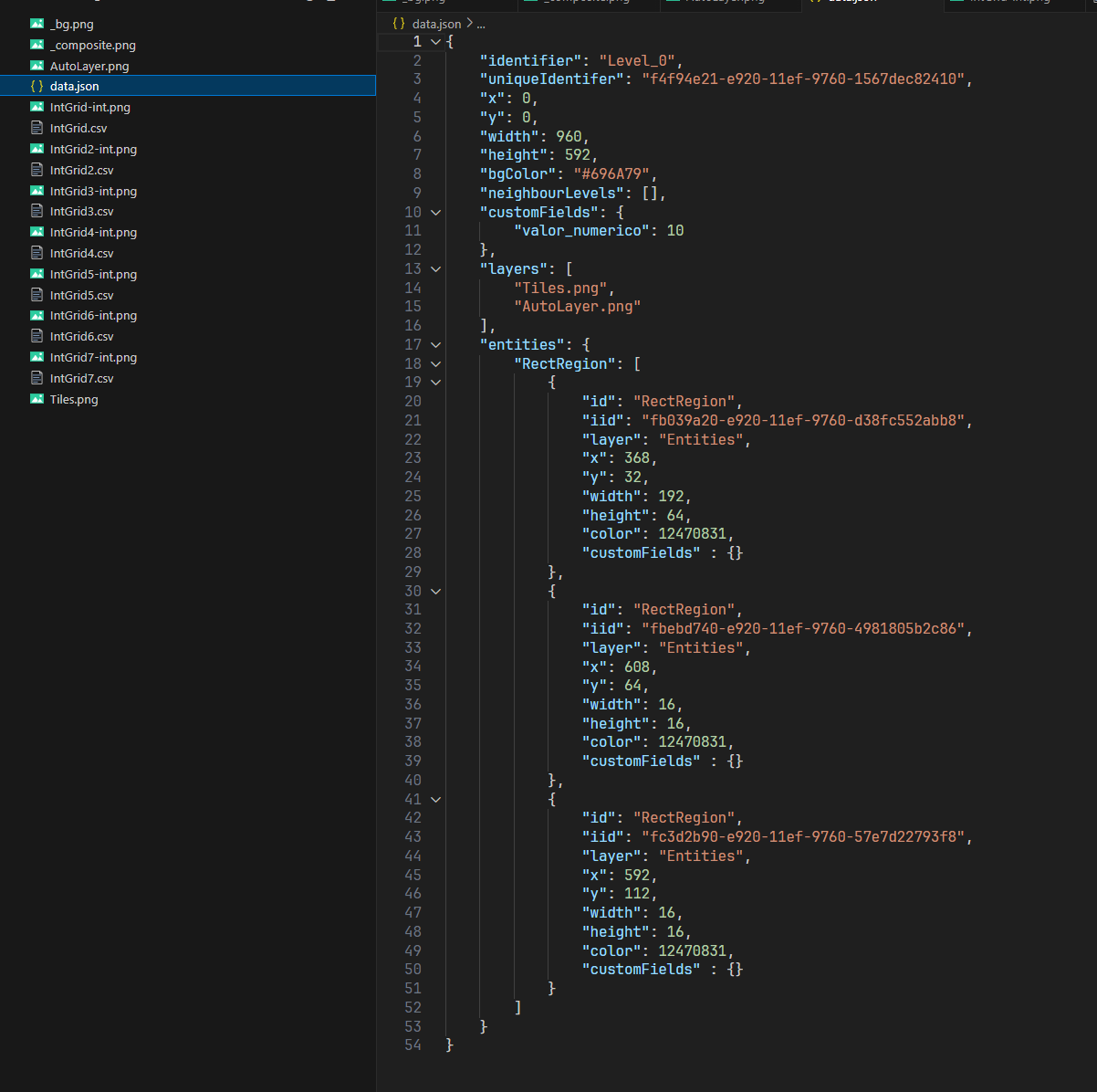

The exported data is considerably more complex than Tiled's data.
- This is not necessarily a problem, since it is still a json file.
(2025-03-06)
- The issue tracker has several bug reports, but it is quite abandoned.
- There are basically no PRs.
- Both Issues and PRs receive no response or comment.
- The last update was 1 year and 2 months ago.
- The last commit was 4 months ago.

Compile

Setup

haxe setup.hxml
- Install required Haxe libs, listed in the file setup.hxml .
cd app -> npm i
- Install Electron locally and other dependencies through NPM.

Compile

haxe main.debug.hxml
haxe renderer.debug.hxml
cd app -> npm run start
The app/package.json contains a list of other commands to use with npm run _command_

Change entries

In LDtk :
- Add the entry in the class by changing the entries in:
  - new
  - toJson
  - fromJson
- Visually:
  - related .html file.
    - Makes things appear in the interface, but nothing is saved when making any change.
  - ui/modal/panel/_related_script_/updateForm()
    - Used to save the changes made in the interface. Without this, opening and closing a tab in the app loses the information.
    - References:
      - zindex .
      - ysort .
      - colWidth .
      - colMode .
In ldtk-haxe-api (Schema) :
- About :
  - It is necessary to change the ldtk-haxe-api , because it is there that the json schemas are obtained.
  - The classes ldtk.Json , etc, come from that lib.
  - It is not necessary to change docs/JSON_SCHEMA.json or docs/MINIMAL_JSON_SCHEMA.json .
  - It is not necessary to change the version of ldtk-haxe-api before running the haxelib git ldtk-haxe-api ... etc command.
- Change the files of the ldtk-haxe-api .
  - I believe the only important file is src/json.hx
- COMMIT the modifications to the remote.
  - You need to do this every time you change the ldtk-haxe-api .
- Run LDtk - Fetch Schema .
  - Runs this in the background: haxelib git ldtk-haxe-api https://github.com/caioraphael1/ldtk-haxe-api.git caio
  - You need to do this every time you change the ldtk-haxe-api .
Finally :
- Run LDtk - Compile & Run .
My post:
- 1. I figured it out: I had to fork https://github.com/deepnight/ldtk , make my changes in the src/ldtk/Json.hx file, push to remote, and run inside the ldtk root folder haxelib git ldtk-haxe-api https://github.com/caioraphael1/ldtk-haxe-api.git caio , which refers to my github fork and branch caio .
- I have no idea if this is the "right way" to do it, but it works.
- I didn't have to alter the setup.hxml file, but I had to make sure to run the haxelib with the correct path to my fork. Placing a reference to my fork inside the setup.hxml file and running haxe setup.hxml didn't work, for some reason, so I ended up just ignoring the setup.hxml file.

Dissatisfactions

Editor

Does not support placing images in the world well.
- It is always necessary to use a TileSet.
  - Use a tile that composes the entire image, or multiple smaller tiles that together compose the entire image.
LDtk's YSort is not done across different layers.
- Severity :
  - It's just a visual inconvenience in LDtk, it doesn't break the data.
- "A layer with YSort enabled should interact with the tiles contained in itself and with other layers that also have YSort enabled".
  - In other words, it's like adding itself to a pool to perform ordering.
LDtk changes casing and removes characters, even in the most "liberal" case.
There is no grouping of Layers.
- This would be useful to organize the Floors of my game.
- Not gamebreaking or anything. I use IntGrid to make the separation.
Does not allow Isometric or Hexagonal Grids.

Entities

Entity placement tool :
- EntityLayer entities cannot be flipped.
  - Tiles can be flipped with the X or Y button, but entities cannot.
- Does not allow deleting entities in bulk with Shift MB2.
- Does not allow selecting entities in bulk with Shift MB1.
Entities are not drawn with YSort.
- I felt this was a problem when drawing trees as Entities.

Tileset

tile_size is always square; the TileSet does not allow editing tile width and height.
- I felt this was a problem when drawing the cliff_32x16x16.
  - This made me have to edit the tile to be 48x48 instead of 16x48.
Padding and spacing of tiles are also square, not per axis.
Collision definition :
1. ~ Each tile has a metadata field that accepts a polygon to represent collision.
2. ~~The TileSet has an Enum with 3 fields; each field shows the following options below when selected~~:
  - Impressions :
    - (2025-06-11) Does not solve basically any problem. Works for some extremely specific cases, but it's not a good solution.
  - "I place the pivot at the base of the tree trunk and associate a capsule-shaped collision enum".
  - Box.
    - width.
    - height.
  - Capsule (box with trimmed edges).
    - width.
    - height.
  - Circle.
    - radius.
3. ~~The TileSet has a single collision editor, so you can draw 1 polygon that represents the collision for ALL tiles~~.
Pivot Point :
1. ~ Each tile has its own custom Origin (former pivot-point), measured in px, not %.
2. ~~It is necessarily a TileSet characteristic~~.
  - Impressions :
    - (2025-06-11) Although useful, it's much better to have a pivot associated with each tile, instead of the tileset, because it's annoying to deal with varied tilesets.
  - This makes it consistent with Entities.
  - This causes only a single Pivot editor to be implemented, valid for:
    - TileLayer.
      - Makes total sense, since TileLayer can only have 1 TileSet anyway.
    - InGrid / Auto-Layer.
      - Doesn't even have a PivotPoint, it makes sense to have it on the TileSet since IntGrid also can only have 1 TileSet.
- It is not allowed to specify the tile's origin point.
  - This can be solved in IntGrid or in TileSet.
    - I must evaluate which of the two options makes more sense, considering TileLayer, IntGrid AND Auto-Layer problems.
  - This ends up being a bigger problem for Tibia-style cases.
  - It's also annoying when you want to place a simple decoration element, but it occupies a non-conventional space in the tile.
    - It's just an inconvenience, but not a big deal.
  - It is not possible to specify the YSort origin point of each tile.
    - This is solved with the ability to change the tile's origin while using that origin as the YSort Origin.
  - Useful :
    - The EntityLayer allows a nice customization of the PivotPoint; I should evaluate if that is valid for other cases.
    - The TileLayer allows changing the origin.
    - IntGridLayer and Auto-Layer do not allow changing the origin
      - This hinders drawing autotiles.
      - I felt this was a problem when drawing the cliff_32x16x16.

IntGrid

IntGridLayer tiles cannot be flipped.
IntGridLayer's YSort is buggy.
- This is the YSort of a single layer with itself.

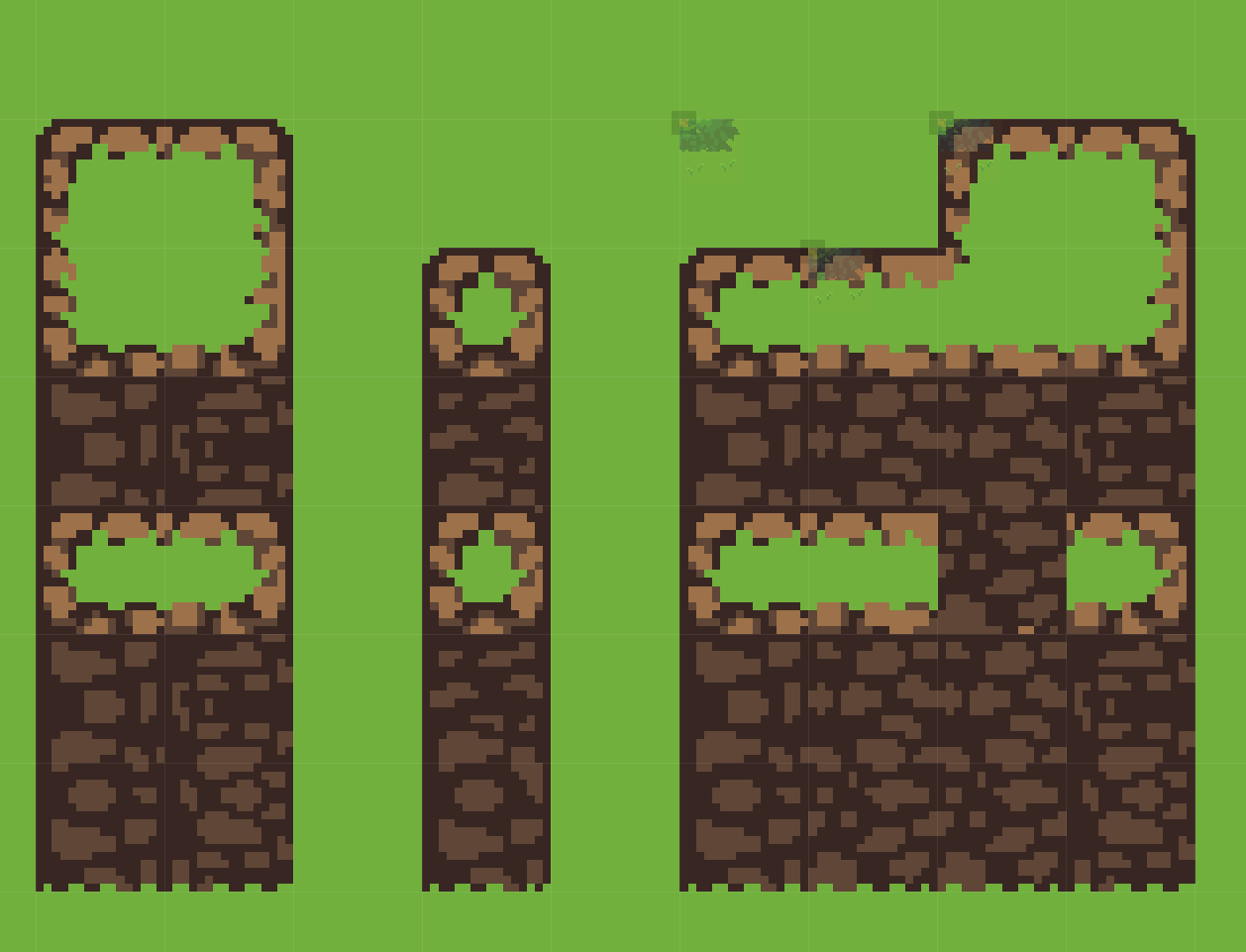

- It's clearly buggy, draw the image below and play with it to understand.
- .
RulesWizard flips tiles automatically, greatly disrupting setting different tiles.

TileLayer

Tile preview for TileLayer is quite confusing, resulting in a strange offset.
When flipping a Tile on any axis, it's confusing where the tile will be placed.
- If the Tile had a preview like the EntityLayer this would be much better.

Features

Super simple export .
- Saves a composite of the data, without saving any metadata or tiles.
- When enabling this option, the software "crashed" 2 times, having to restart.
  - Since then, the project became corrupted and I couldn't save progress anymore.
  - When disabling this option, I was able to save the file again.
- .

Non-features

No Isometric, no plans for it.

External

Zig

Zig-ldtk .
- 2 years without updates.

Godot

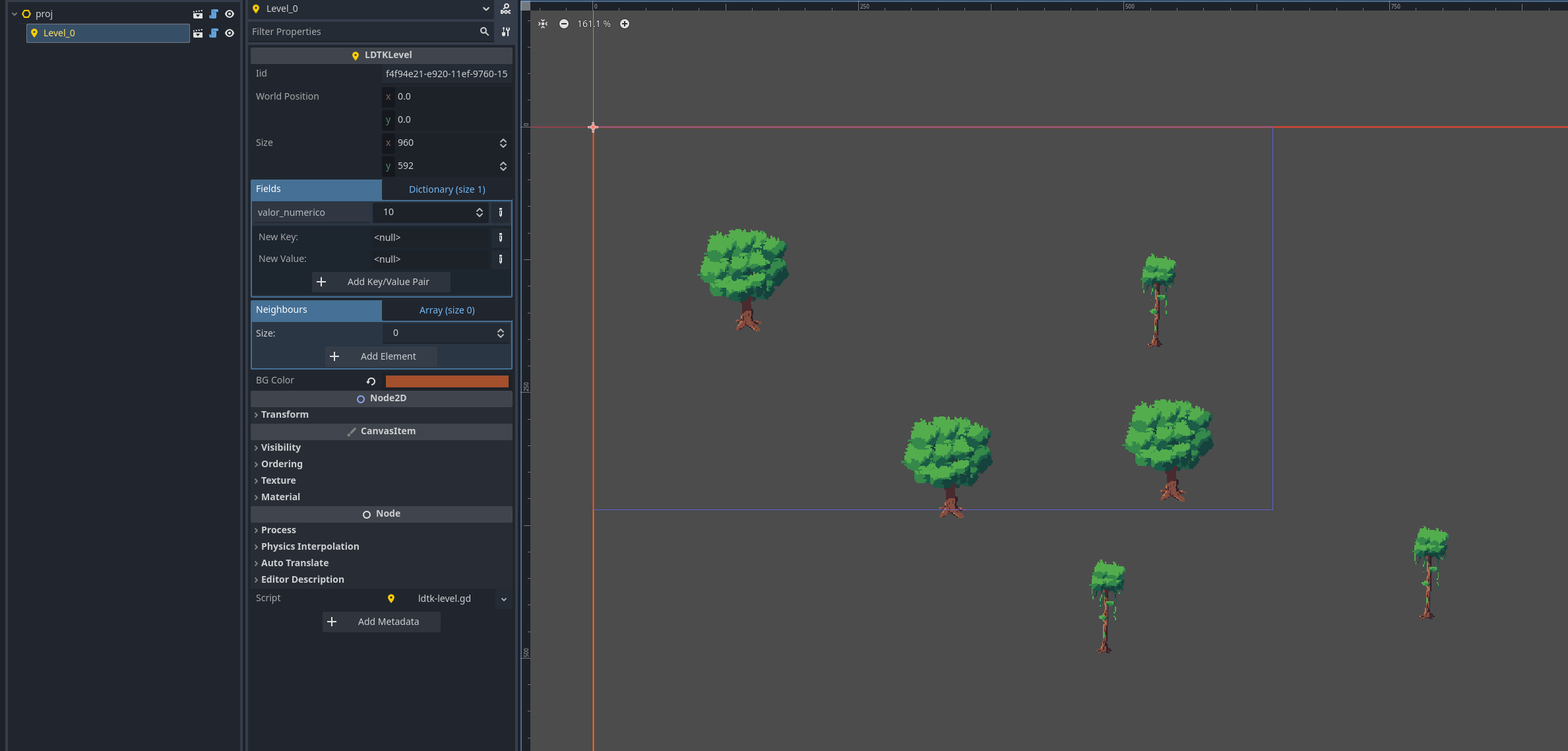

~~ldtk-importer~~ .
- Inspired by Amano's addon.
- .
- .

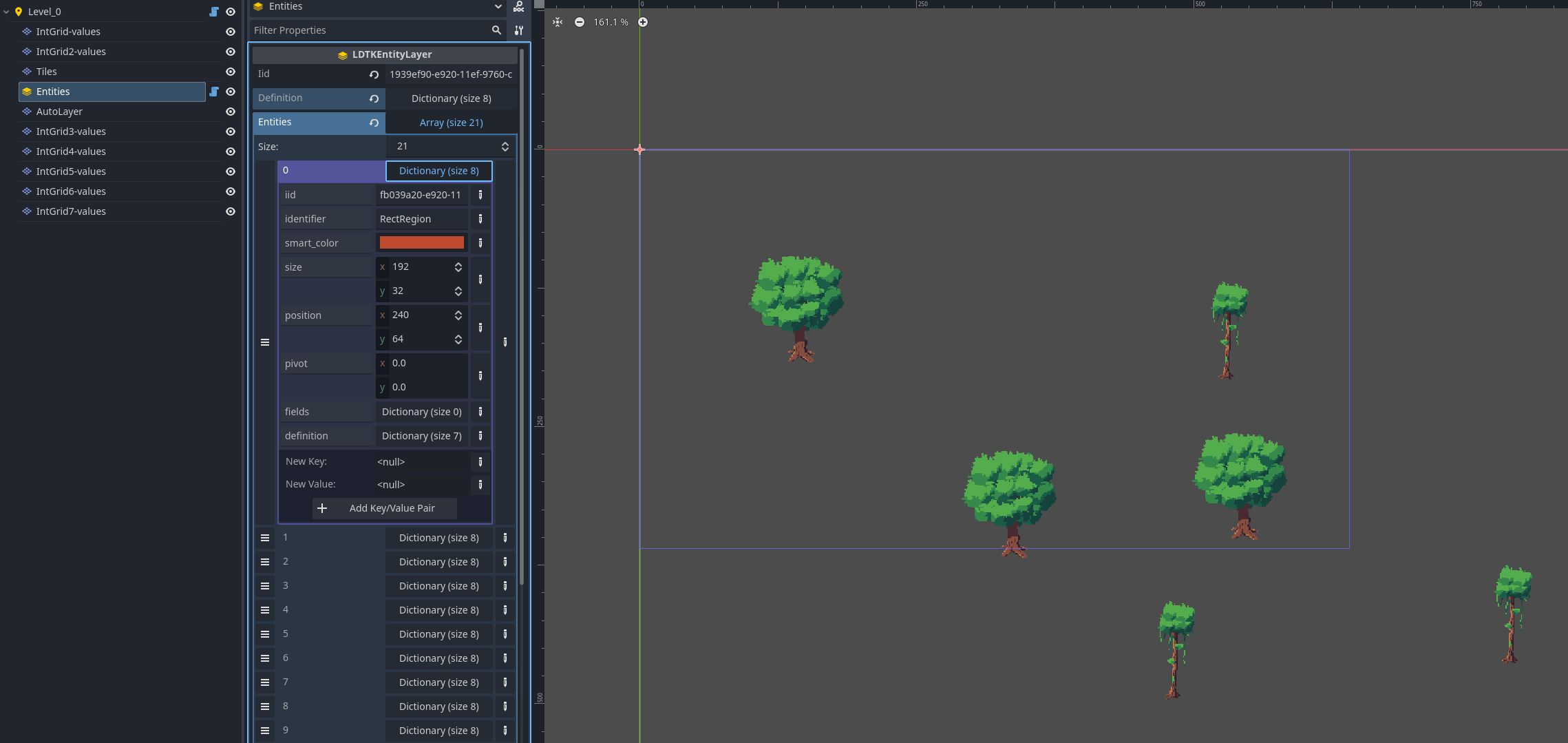

  - EntityLayer is just a Node2D.
- Tiles in the tilemaps are split the same as in LDtk, so the ysort problem happens depending on how tiles were defined in LDtk.
- Impressions :
  - (2025-03-15)
    - I had problems when:
      - If the tileset has a cell_size, but the TileLayer has another, importing with this addon everything breaks, so the texture is loaded into the wrong TileMapLayer node in Godot.

        In short, everything explodes. Some nodes end up with 2 textures while others end up with none.

        This is important to support cases where "trees are a large 100x100 tile positioned on a 16x16 grid", for example.

        When I had this problem, the error in Godot's terminal was ultra confusing, even in verbose error mode (import option).
    - I felt quite insecure, as it's an abstraction of the process, obviously.
    - I prefer to simply make my own importer...
~~amano-ldtk-importer~~ .
- 2 years without updates.
- Demo .

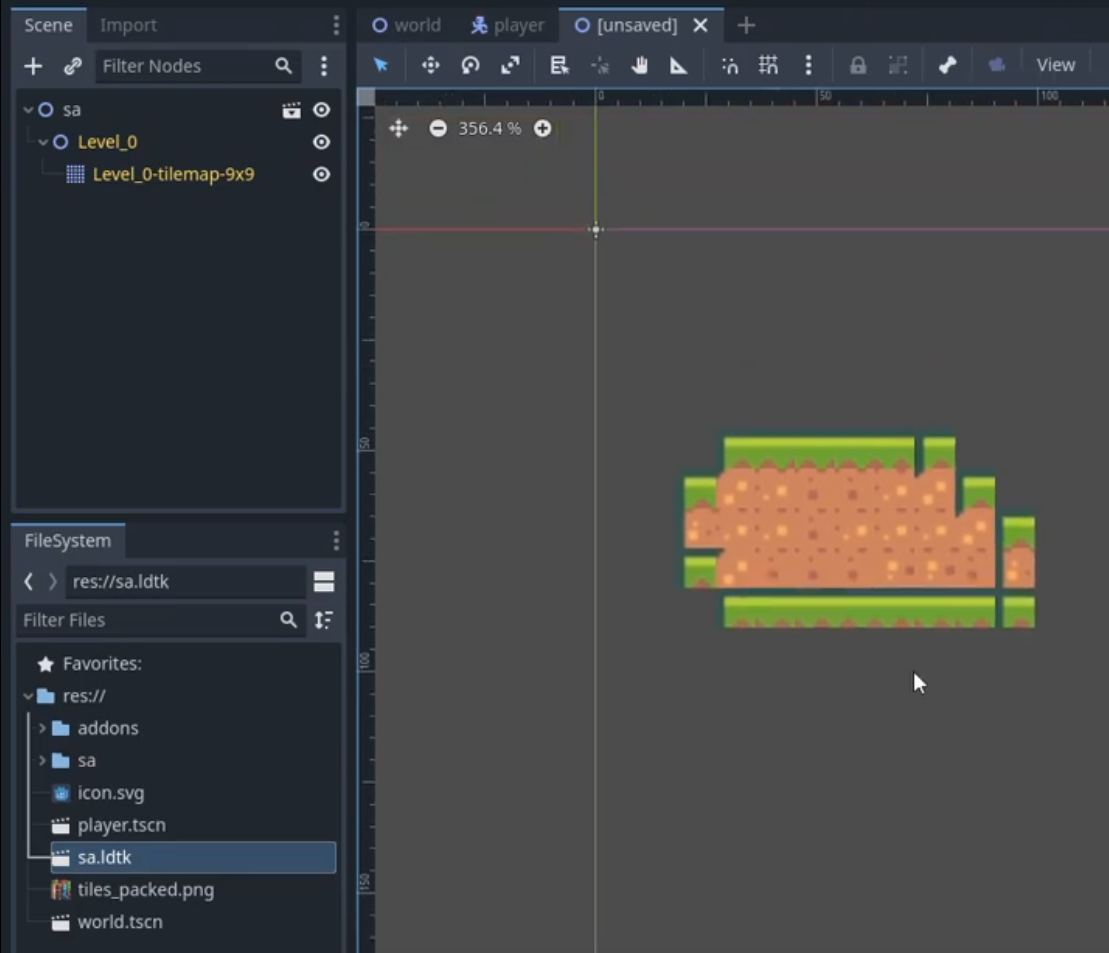

- 'new inherited scene', from the .ldtk file.
  - .
  - Reminiscent of the .gltf workflow.
